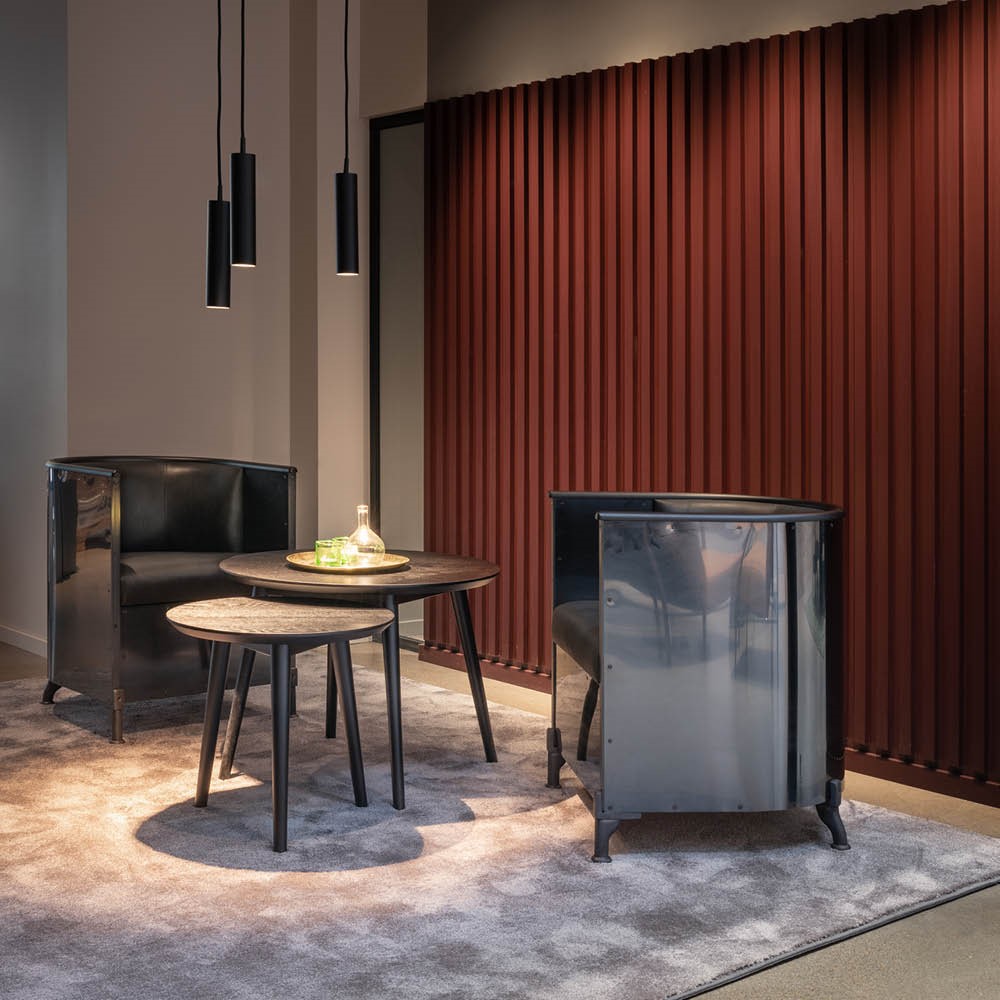

Zkye 55 G2 Pendant

A Ø 55 mm pendant luminaire. Deep reflector for optimal light comfort and and good light distribution. For mounting to fixed ceilings with ceiling cups, or on contact rails with adapter.

Connection

In ceiling cup: snap-in terminal block 5 x 2.5 mm².
On contact rail: adapter for 3-phase rail or Control Track (DALI).

Design

Standard white (RAL 9016) or black (RAL 9005).

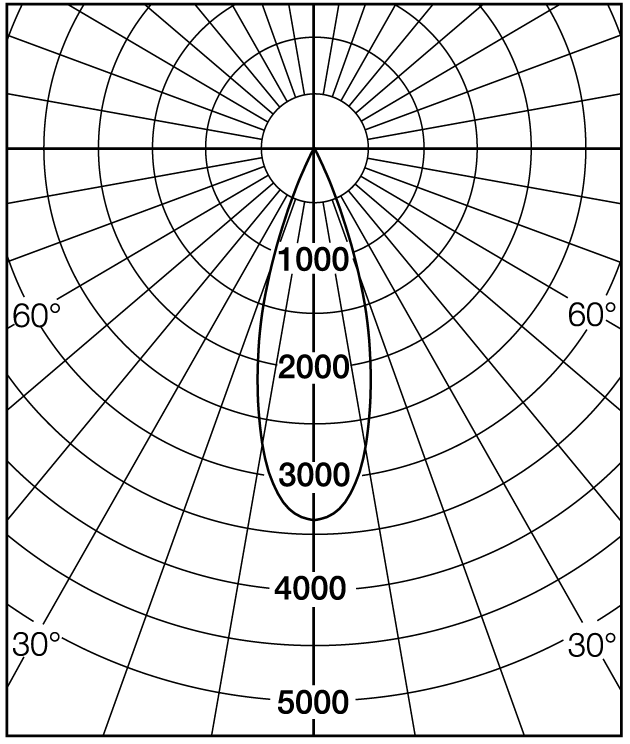

Light distribution

Narrow, medium or wide light distribution.

Dimming

DALI, e-Sense Stage or Trailing Edge (rear edge control).

Rail

3-phase rail or Control Track (DALI).

Adapter

The adapter locks mechanically to the rail with a knob. Phase 1, 2 or 3 can then be selected with the phase selector knob.

LED-information

Driver integrated in luminaire housing.

Media

Zkye G2

Zkye is a series of spotlights with many possibilities. The design is modern and distinctive, and thanks to a wide range of installation options, designs, and features, you can set the right mood in any room or venue by...

More about the family Zkye G2

Document

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
e-Sense Stage RTC Backup e-Sense Stage Stand-Alone Control Box RTC Backup 99816
e-Sense Stage Stand-alone DALI e-Sense Stage Stand-Alone Control Box DALI 99812
e-Sense Stage Trailing Edge e-Sense Stage Stand-Alone Control Box Trailing Edge 99813
e-Sense Stage Relay e-Sense Stage Stand-Alone Control Box Relay 99814
e-Sense Stage 4CH PWM e-Sense Stage Stand-Alone Control Box 4 CH PWM 99815
Xpress push button panel Xpress push button panel, white. 82172
Xpress push button panel Xpress push button panel, black. 82173
Xpress push button panel Xpress push button panel with long range, white. 82178
Xpress push button panel Xpress push button panel with long range, black. 82179
Zkye 55 Pendant all
