Opalume Catenary
1873 Opalume 1873

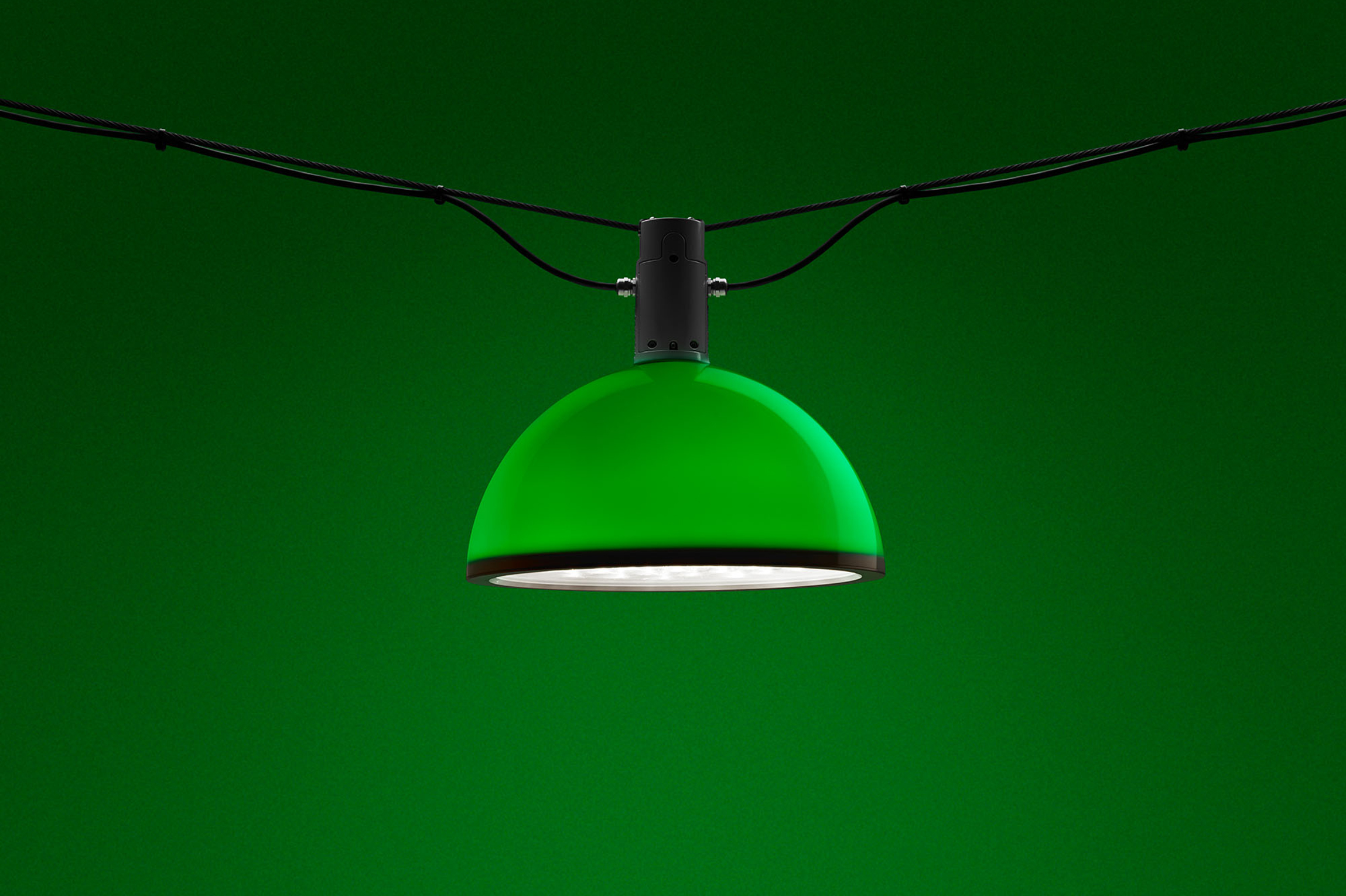

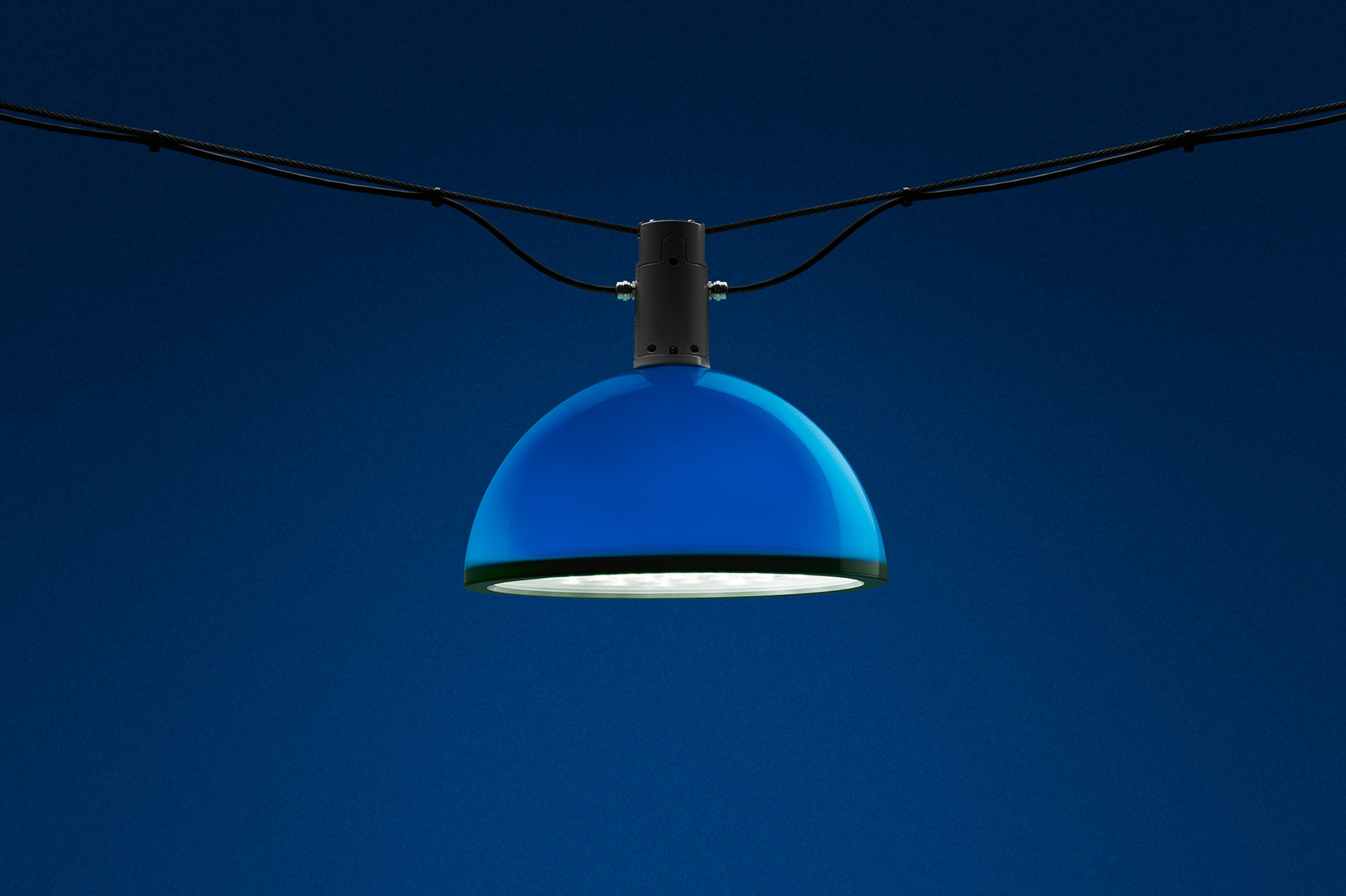

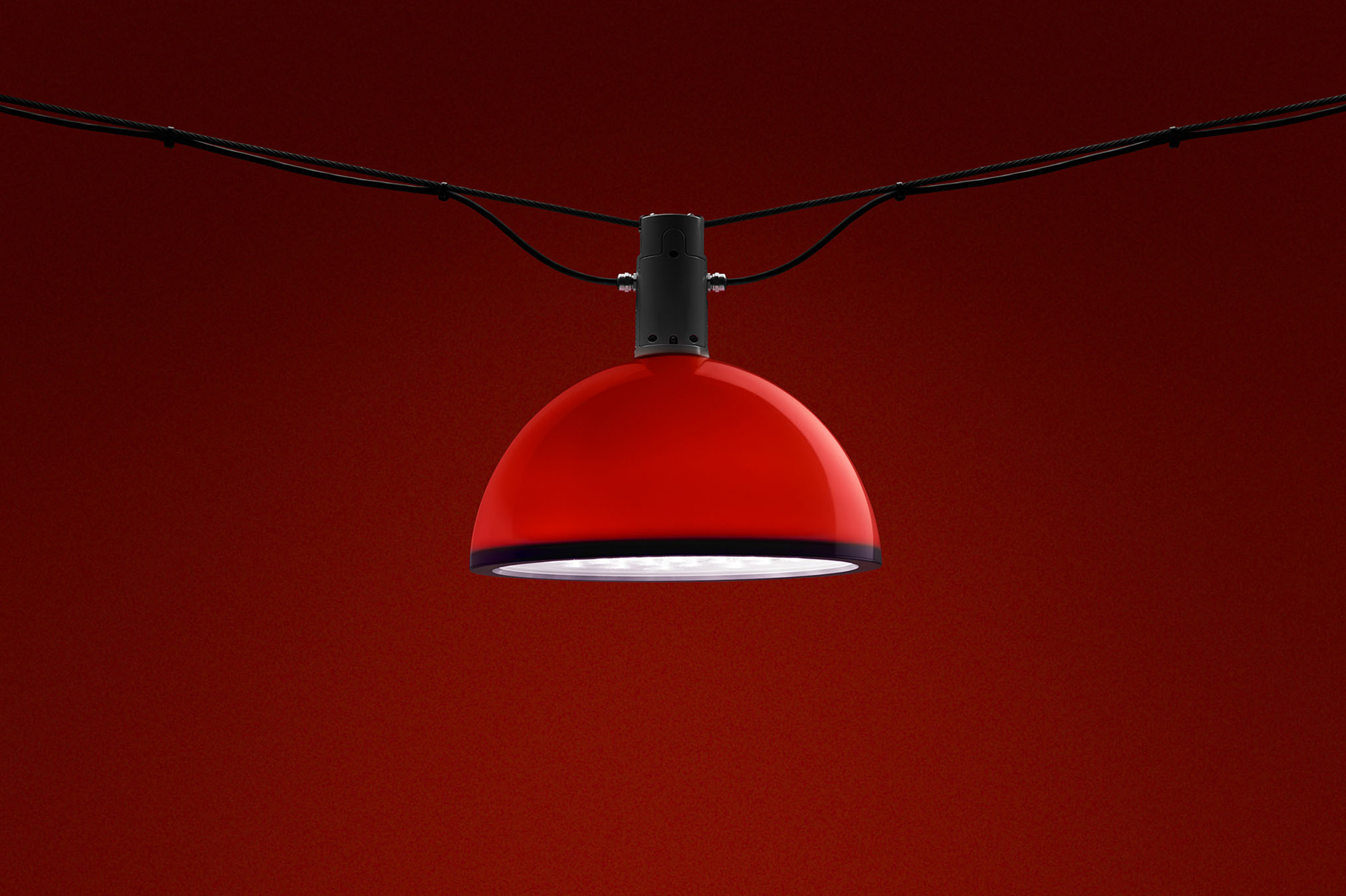

Suspended luminaire with high performance and light comfort and CLO for an even output. Available in two different designs, conical and spherical, with the possibility of RGBW. Its specifically optimised light pattern with AGC lenses have been developed for road lighting. Its innovative and smart suspension design ensures efficient installation.
Installation
Luminaire for wire installation, Ø 6-12 mm. The luminaire can be angled ±25°, in instances where the wire is not suspended horizontally over the roadway, and rotated ±130°, where the wire is not suspended perpendicular to the roadway.
Connection
Supplied without connecting cable but with prevision for a cable with an external diameter up to Ø 14 mm. Through-wiring possible. Luminaires can be supplied with a cable upon request.
Design
Diffuser of opal acrylic or spun aluminium in standard colors. Any color on request. Wire fastening in stainless steel. Heatsink and the rest of the wire mount are made of die-cast aluminium. Hardened flat glass. Fastener of A4 quality with zinc coating.
Optics
Specially developed L-lenses for installation in the middle of the road. The luminaire is also available with a rotationally symmetrical E-lens and other AGC (Advanced Glare Control) lenses if necessary.
Dimming
DALI variant, night-time dimming and Airglow RGBW control can all be added in Fagerhult Configure.
Citygrid for luminaires with Zhaga base. For Citygrid Zhaga products, see accessories.
Quick start guide for Airglow; see document below.
Can be supplied pre-configured for Philips CityTouch control system on request.
LED-information
Driver with integrated surge protection, CM 8kV, DM 6kV. Extra surge protection of 10 kV on request.
Miscellaneous
Available in class I and II.
Zhaga or NEMA socket on request.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media
Opalume – Installation
Opalume
Opalume is a range of weatherproof luminaires for streets and roads, combining high performance with excellent light comfort. Opalume is available in three shapes; spherical, conical and half ellipse. The carefully balanced...
More about the family OpalumeOther products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
The articles listed below are examples.
Use Fagerhult Configure to adapt and optimise your own version of Opalume Catenary by selecting CRI, colour temperatures, optics, luminous flux, accessories, etc.
Filter
Showing 26 of 26 articles
| Art.no. | Start W | Average W | Lumen output | Diamater, mm | Diffuser | Light source colour | Lens | Protective class | |
|---|---|---|---|---|---|---|---|---|---|
| Art.no. | Start W | Average W | Lumen output | Diamater, mm | Diffuser | Light source colour | Lens | Protective class | |
| 306200-22868 | 16 | 16.5 | 1741 | 400 | Opal | 740 | E1 | 1 | |
| 306200-22869 | 16 | 17 | 1741 | 400 | Opal | 740 | E2 | 1 | |
| 306200-22870 | 16 | 17 | 1641 | 400 | Opal | 740 | E3 | 1 | |
| 306200-22871 | 16 | 16.5 | 1741 | 400 | Opal | 740 | E5 | 1 | |
| 306200-22872 | 16 | 17 | 1641 | 400 | Opal | 740 | E6 | 1 | |
| 306200-22873 | 16 | 17 | 1841 | 400 | Opal | 740 | E9 | 1 | |
| 306200-22874 | 16 | 16.5 | 1741 | 400 | Opal | 740 | L2 | 1 | |
| 306200-22875 | 16 | 16.5 | 1741 | 400 | Opal | 740 | L4 | 1 | |
| 306200-22876 | 16 | 17 | 1641 | 400 | Opal | 740 | L5 | 1 | |
| 306200-22877 | 16 | 16.5 | 1741 | 400 | Opal | 740 | L7 | 1 | |
| 306200-22878 | 16 | 17 | 1741 | 400 | Opal | 740 | L8 | 1 | |
| 306200-22879 | 16 | 16.5 | 1641 | 400 | Opal | 740 | F60 | 1 | |
| 306200-22920 | 16 | 17 | 1741 | 400 | Opal | 740 | L9 | 1 | |
| 306200-22941 | 123 | 129 | 17866 | 507 | Opal | 740 | E1 | 1 | |
| 306200-22942 | 123 | 129 | 17366 | 507 | Opal | 740 | E2 | 1 | |
| 306200-22943 | 122 | 128.5 | 16466 | 507 | Opal | 740 | E3 | 1 | |
| 306200-22944 | 123 | 129 | 17766 | 507 | Opal | 740 | E5 | 1 | |
| 306200-22945 | 122 | 128.5 | 16366 | 507 | Opal | 740 | E6 | 1 | |
| 306200-22946 | 123 | 128.5 | 17566 | 507 | Opal | 740 | E9 | 1 | |
| 306200-22947 | 122 | 128.5 | 17866 | 507 | Opal | 740 | L2 | 1 | |
| 306200-22948 | 122 | 128.5 | 17766 | 507 | Opal | 740 | L4 | 1 | |
| 306200-22949 | 123 | 129.5 | 16466 | 507 | Opal | 740 | L5 | 1 | |
| 306200-22950 | 122 | 128.5 | 17766 | 507 | Opal | 740 | L7 | 1 | |
| 306200-22951 | 122 | 128.5 | 17366 | 507 | Opal | 740 | L8 | 1 | |
| 306200-22952 | 123 | 129 | 17366 | 507 | Opal | 740 | L9 | 1 | |
| 306200-22953 | 123 | 129.5 | 16566 | 507 | Opal | 740 | F60 | 1 |
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
|
Citygrid Zhaga with sensor MKII | Citygrid Zhaga with sensor MKII is an all-in-one device that instantly provides a luminaire with smart and motion-controlled operation. | 86504 |
|
Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 |
|
Citygrid Zhaga Controller MKII | The Citygrid Zhaga Controller MKII is the intelligent device that transforms a luminaire into a smart luminaire. | 86505 |
