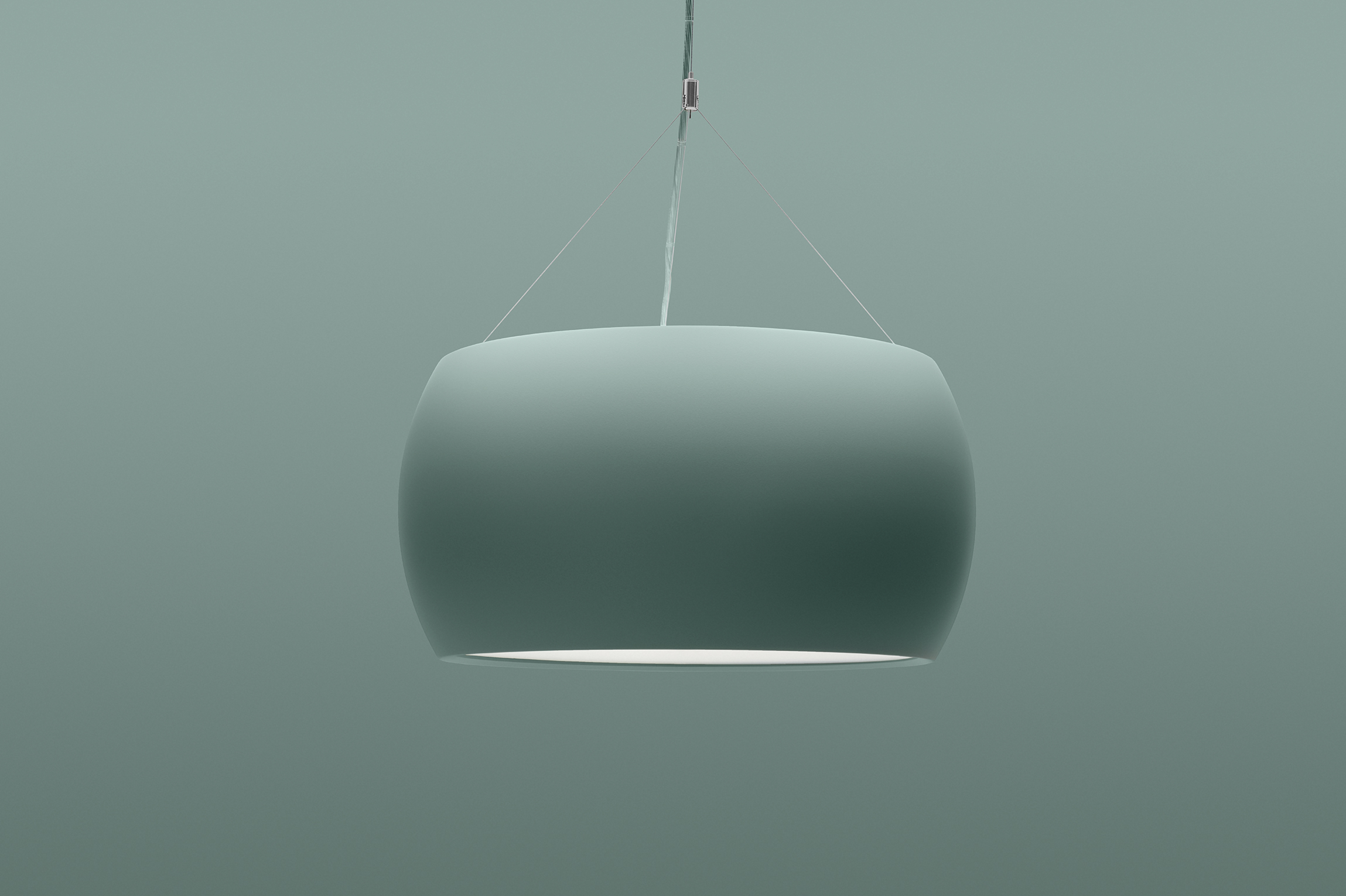

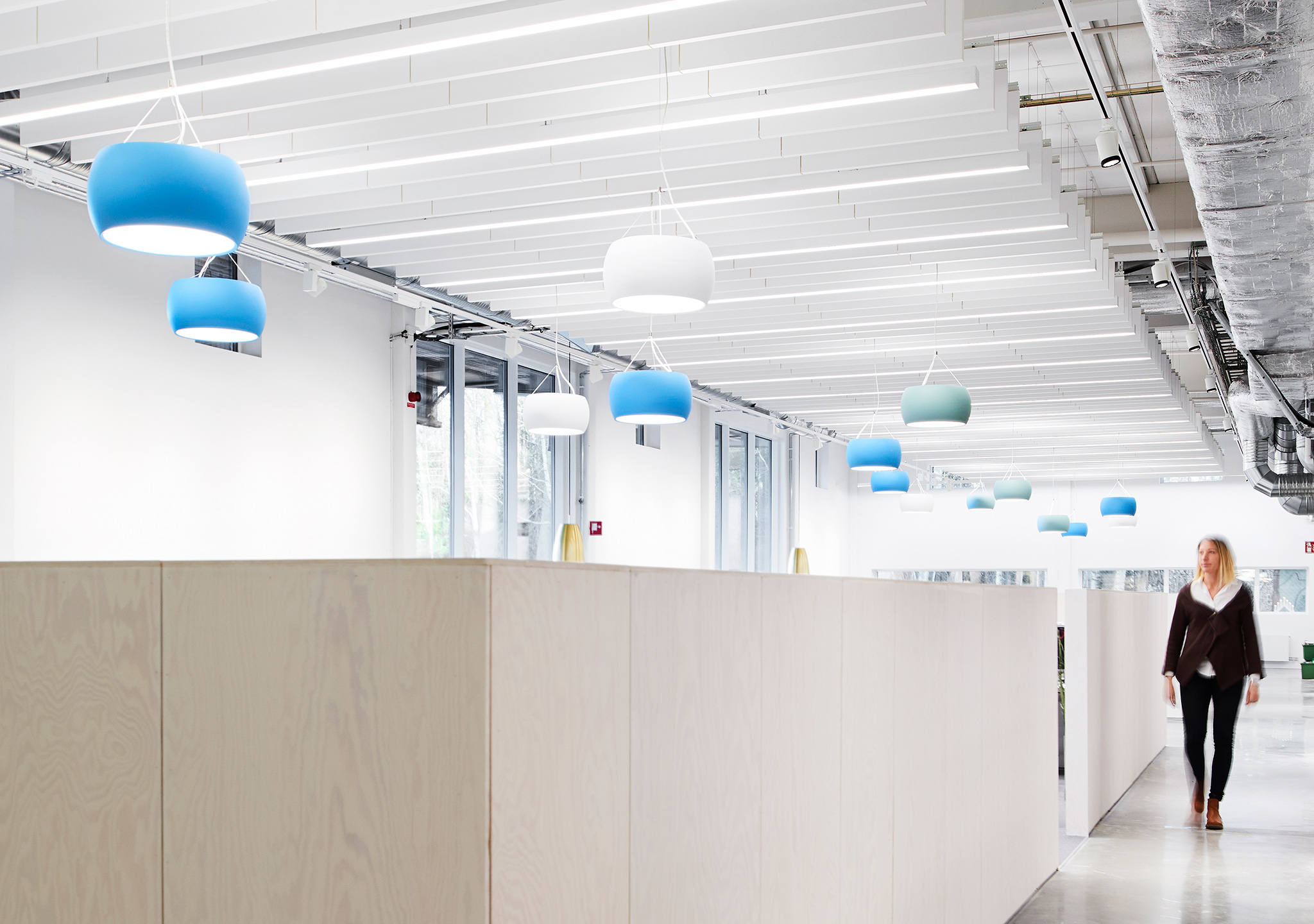

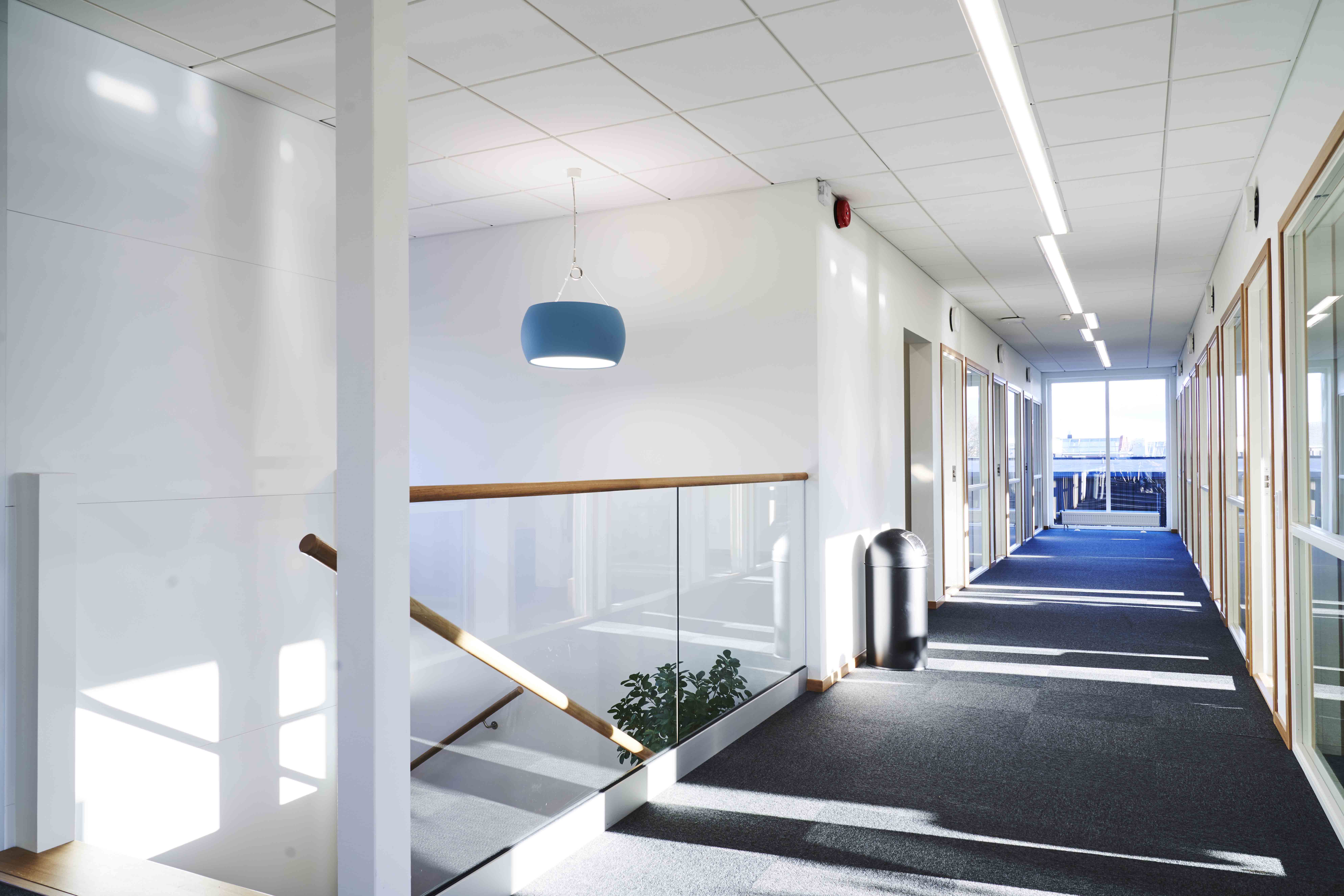

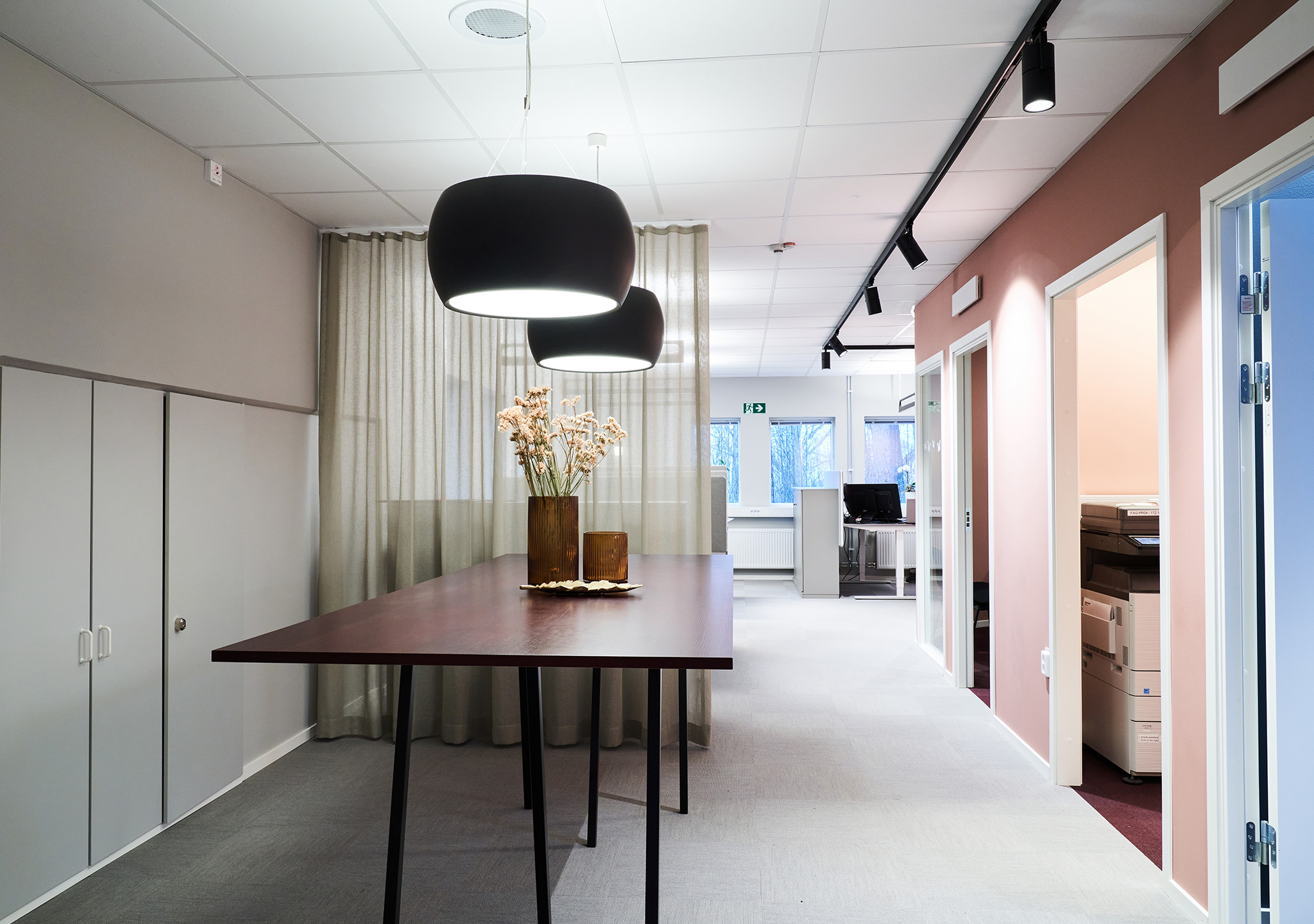

Sweep

A modern direct/indirect lighting solution for modern offices. Available with Opal or Delta louvres in five colours.

Installation

Two point suspension c/c 48 mm.

Connection

For permanent connection with 230 V; built-in LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Surface mounted mains cable possible 180°.

Design

Luminaire body in plastic enamelled in various colours. Supplied with 5  m wire, 6 m transparent cable and white, plastic ceiling cup. Height adjustment is done on the luminaire using a friction lock. The ceiling cup handles inclined ceilings up to 20°.

Louvre

Opal - opal acrylic diffuser.
Delta – microprism louvre in acrylic (PMMA).

Light distribution

Direct/indirect 55/45.

Dimming

DALI/phase-pulse control as standard.

Designed by

PetterssonRudberg.

Miscellaneous

For a surface mounted mains cable, a cut-out is made in the ceiling cup using cutters 94248.

Media

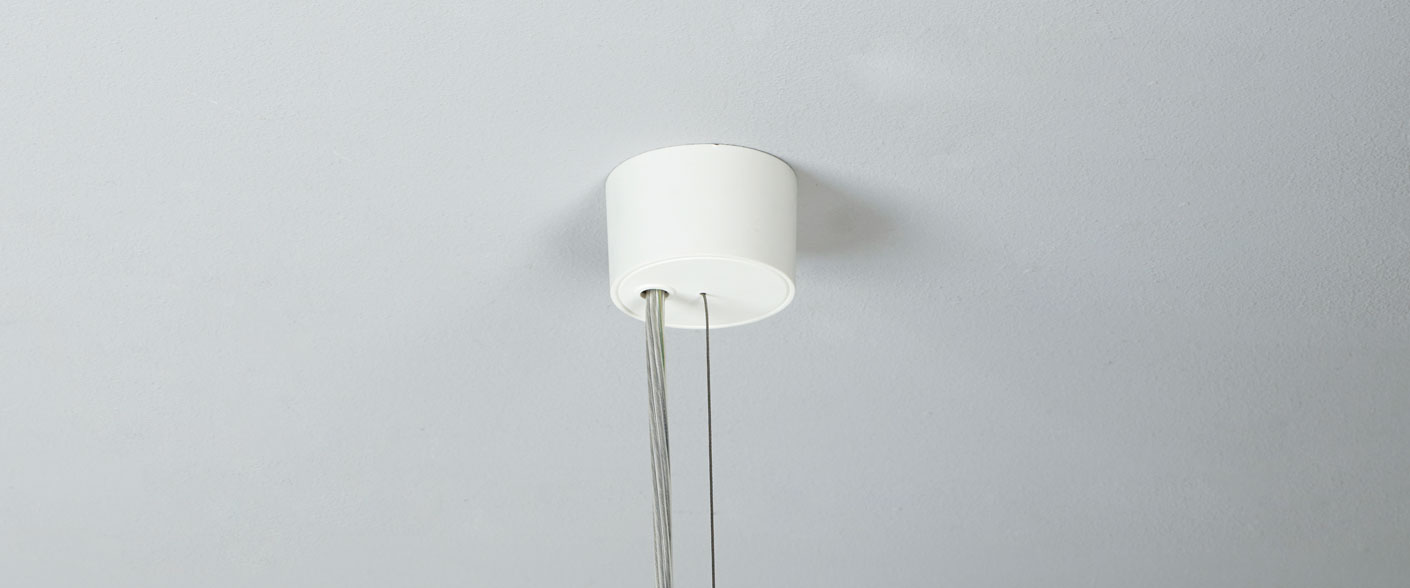

Sweep ceiling cup

Sweep ceiling cup

Installation clips

Sweep and Scoot

The Sweep and Scoot family are attractive luminaires with colour, shape and function in focus. A team where comfort and feeling are central concepts. The luminaires are durable and future-proof, and meet the demands of a modern...

More about the family Sweep and Scoot

Document

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Cutters Cutters, each 94248
