Pleiad G4 125

Efficient downlight with excellent technical lighting properties. Choose between several luminous fluxes, reflector options and distribution angles.

Installation

Recessed mounting in unventilated or ventilated suspended ceilings. Separate driver and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings, see accessories. For detailed information, see the installation instructions.

Connection

Connection in separate driver box. Snap-in terminal block 3x1.5 mmm² (x2), onward connection possible. 5x1.5 mm² (x2) when dimming. Can also be supplied with chassis mounted snap-in connector in the ballast where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector.

Design

Luminaire body in cast aluminium. Visible reflector ring in white aluminium (RAL 9003).

Reflector

Reflector of matt metallised aluminium, white (RAL 9003) or black (RAL 9005) finish. Reflector ring in white aluminium (RAL 9003). Lens of clear acrylic.

Miscellaneous

The luminaire is supplied with dust protection over the light opening. IP 64 under a suspended ceiling, IP 20 above a suspended ceiling. Luminaire body Class III. The supplied driver must be connected to the protective earth. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life."

Media

Pleiad G4 – Installation

Pleiad G4

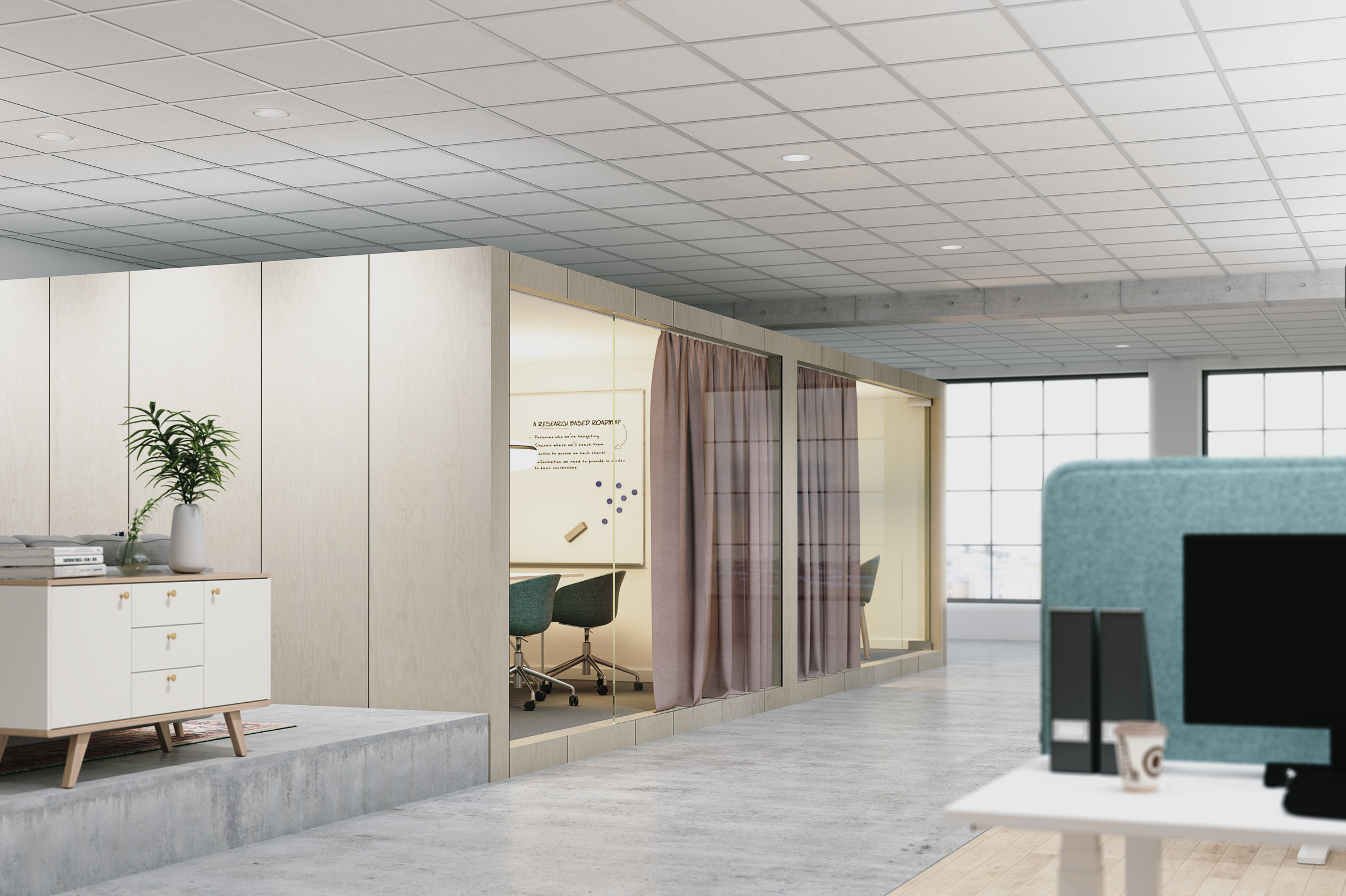

Pleiad G4 is the latest generation of Fagerhult’s classic Pleiad downlight series. Even more efficient. Even better visual comfort. Even quicker to install.

Pleiad G4 simplifies and streamlines advanced lighting planning for...

More about the family Pleiad G4

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Wieland T-connector Wieland 5-way T-connector 91026
Wieland T-connector Wieland 3-way T-connector 91025
WAGO connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 91244
WAGO connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 91243
Wieland connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92793
WAGO T-connector WAGO T-Connector, 3-way, white 91067
WAGO T-connector WAGO T-connector, 5-way, 2 locking levers, blue 88228
Wieland connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92799
Mounting plate Mounting plate HB. Adapted for downlights with recess dimensions Ø 125 41065
no-image placeholder Mounting plate Mounting plate Ø125 41681
Cover plate IP 21 Cover plate IP 21, Ø125 41059
Cover plate opal IP 54 Ø 125 mm, white (RAL 9016) 41133
Cover plate Delta IP 20 Ø 125 mm, white (RAL 9016) 41131
Cover plate Delta IP 20 Ø 125 mm, grey (RAL 7040) 41132
Cover plate opal IP 54 Ø 125 mm, grey (RAL 7040) 41134
Cover plate clear IP 64 Ø 125 mm, white (RAL 9016) 41135
Cover plate clear IP 64 Ø 125 mm, grey (RAL 7040) 41136
Retrofit kit Retrofit kit Ø 125-220 mm 41137
Cover plate Delta IP 20 Ø 125 mm, black (RAL 9005 G10) 41153
Cover plate opal IP 54 Ø 125 mm, black (RAL 9005 G10) 41156
Cover plate clear IP 64 Ø 125 mm, black (RAL 9005 G10) 41159
Edge ring II Ø 125 mm, black (RAL 9005 G10), height 11 mm, external diameter 155 mm. 41138
Edge ring III Ø 125 mm, black (RAL 9005 G10), height 9 mm, external diameter 155 mm. 41141
Sloping ceiling cylinder Sloping ceiling cylinder Ø 125 41083
no-image placeholder Ensto connection cables, 5-way Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. 92786
no-image placeholder Ensto connection cables, 3-way Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. 92785
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. 92788
Ensto T-connector Ensto T-connector 3-way, white 92783
Ensto T-connector Ensto T-connector 5-way, grey 92784
no-image placeholder Ensto power cable Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. 92787
Edge ring II Ø 125 mm, white (RAL 9016 G10), height 11 mm, external diameter 155 mm. 41075
Edge ring II Ø 125 mm, grey (RAL 7040 G10), height 11 mm, external diameter 155 mm. 41076
Edge ring III Ø 125 mm, white (RAL 9016 G10) height 9 mm, external diameter 155 mm. 41077
Edge ring III Ø 125 mm, grey (RAL 7040 G10) height 9 mm, external diameter 155 mm. 41078
