Vialume 2
1112 Vialume 1112
A bigger, more powerful post luminaire with a soft, organic shape. AGC lenses for excellent lighting properties and advanced optics designed to be used as road lighting on highways, wider main roads and in large parking lots. CLO for output consistency
Installation
Post top luminaire which in its standard design can be mounted on a Ø 60 mm post arm bracket. Accessories for other mounting options are ordered separately, see Accessories. Variable tilting function ± 10º for perfect installation. Post height 8-15 m.
Connection
Halogen free connection cable 3x1.5 mm² type FQQ. Delivered with 15,5 m cable. DALI version available on request, delivered with a 5-pin cable. Other cable versions on request.
Design
Body and post bracket in cast aluminium. Aluminium-zinc coated stainless screws. Driver is integrated in the luminaire. Hardened flat glass.
Optics

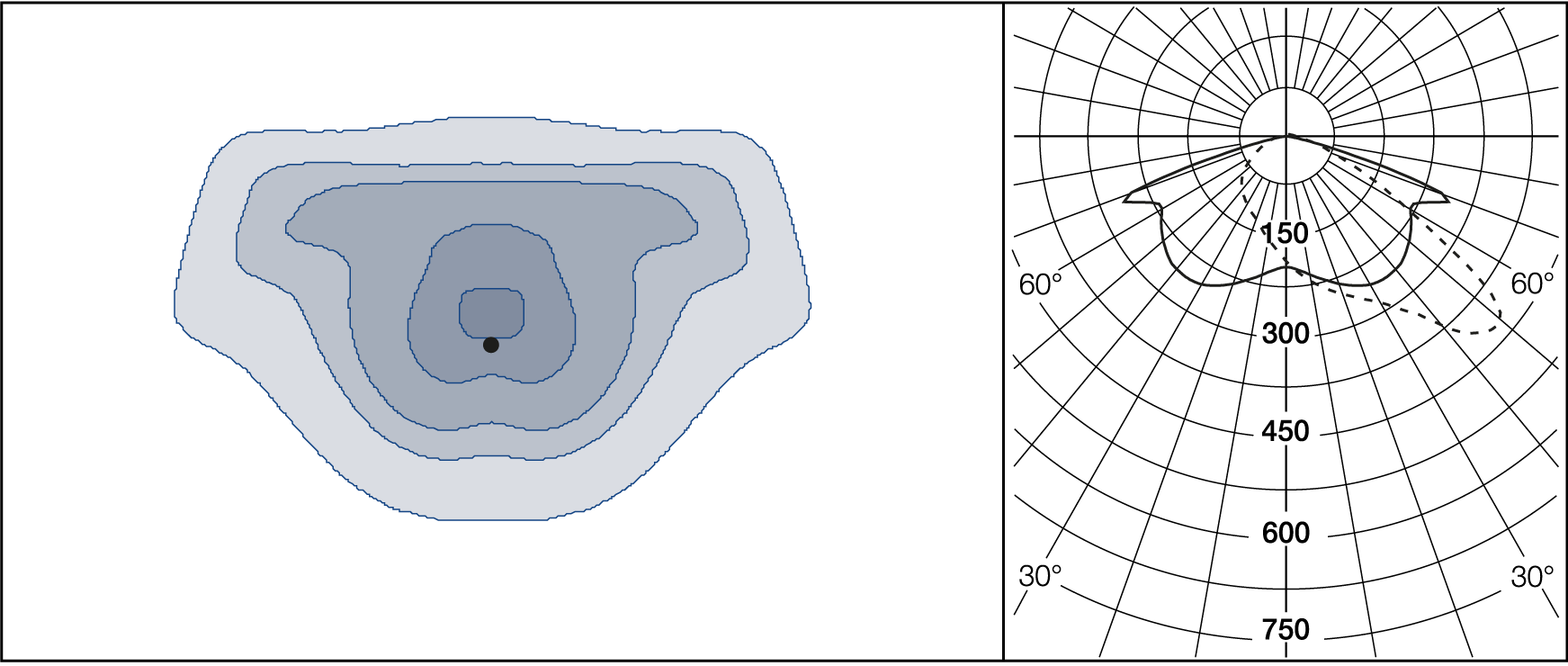

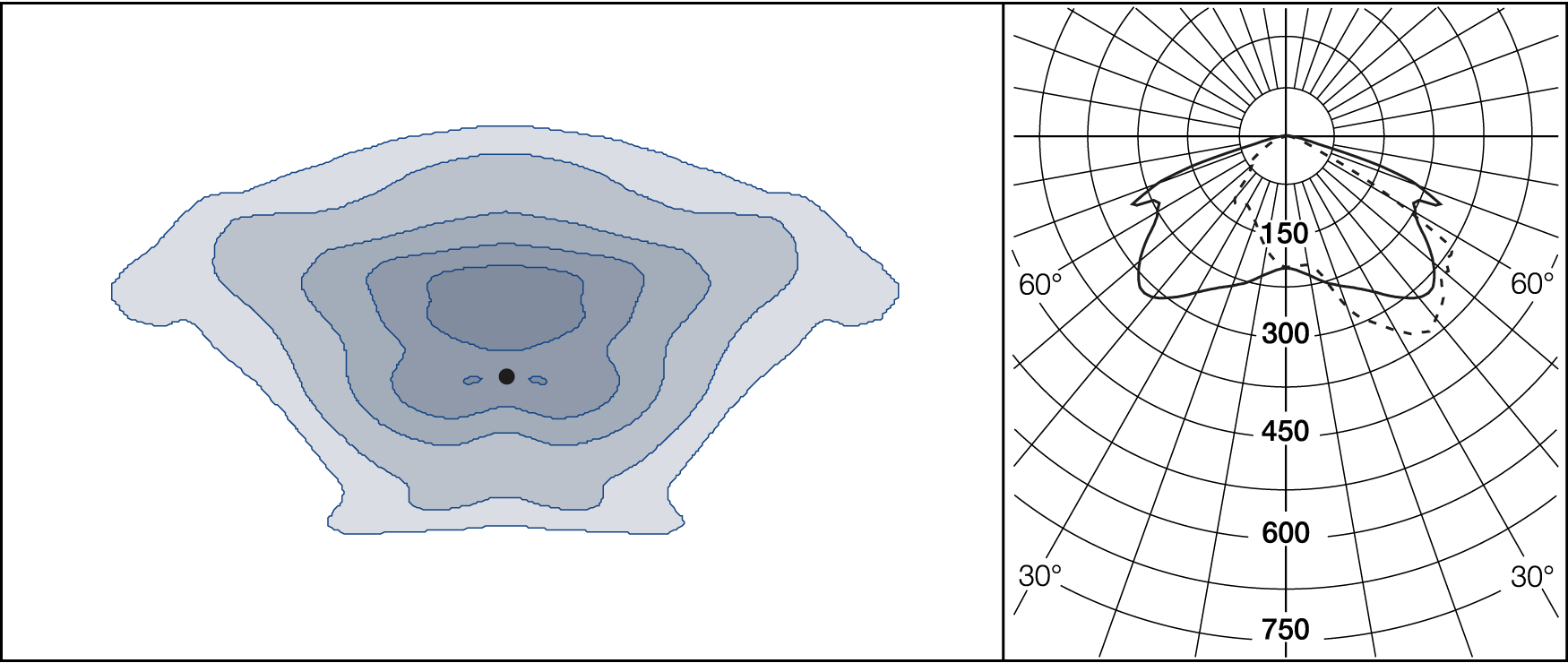

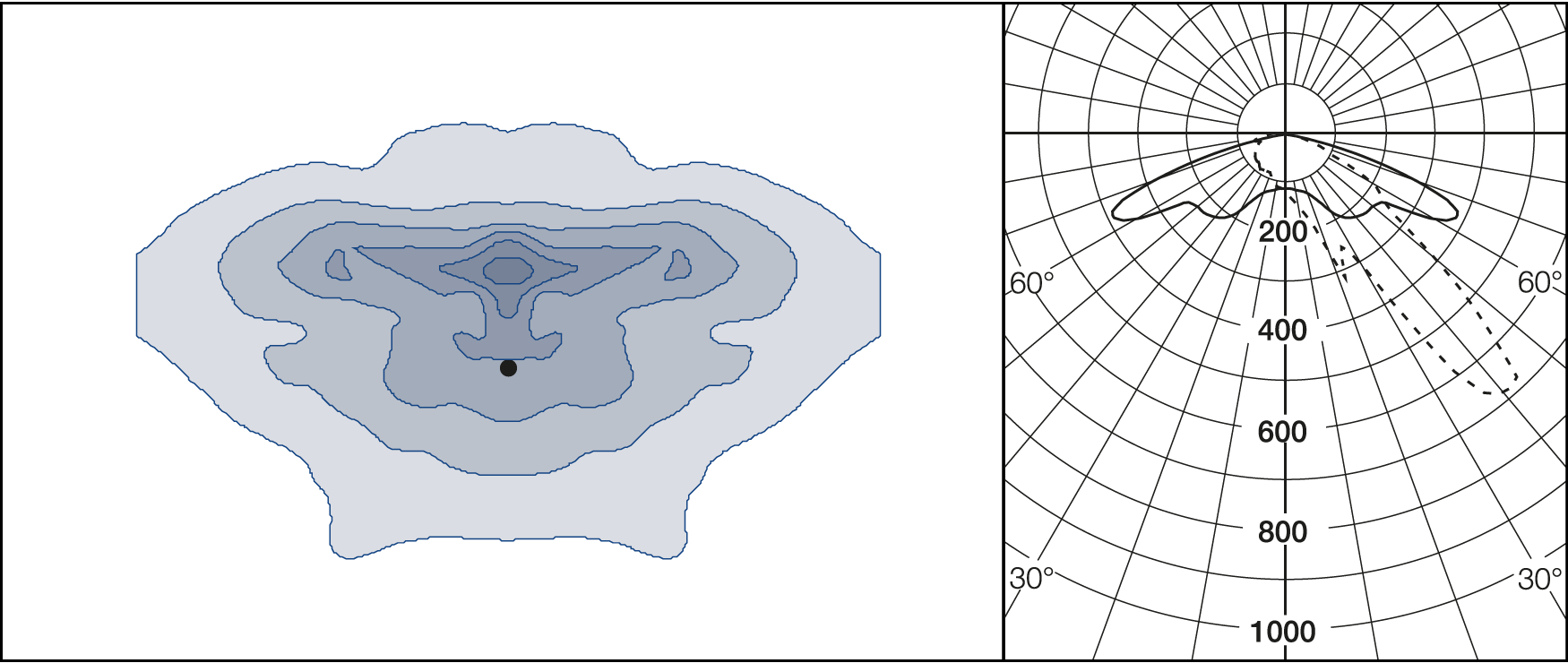

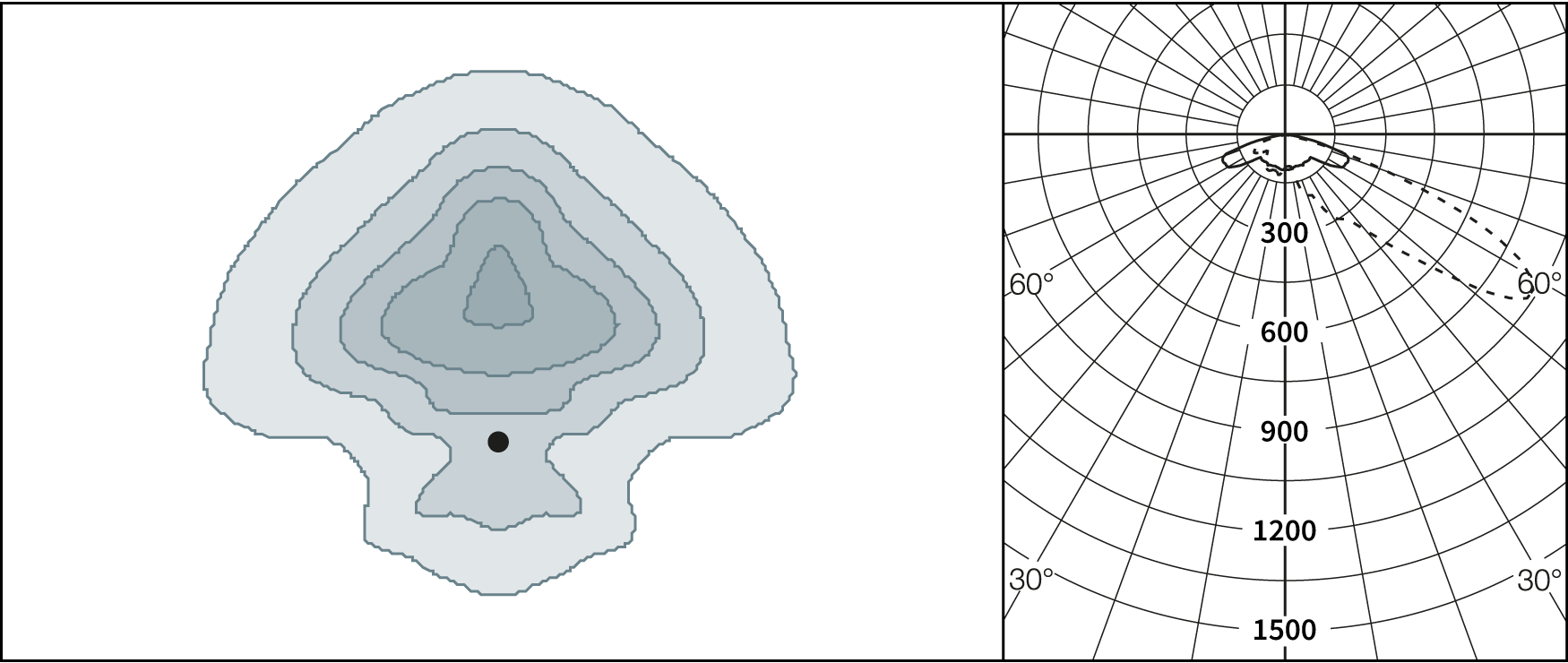

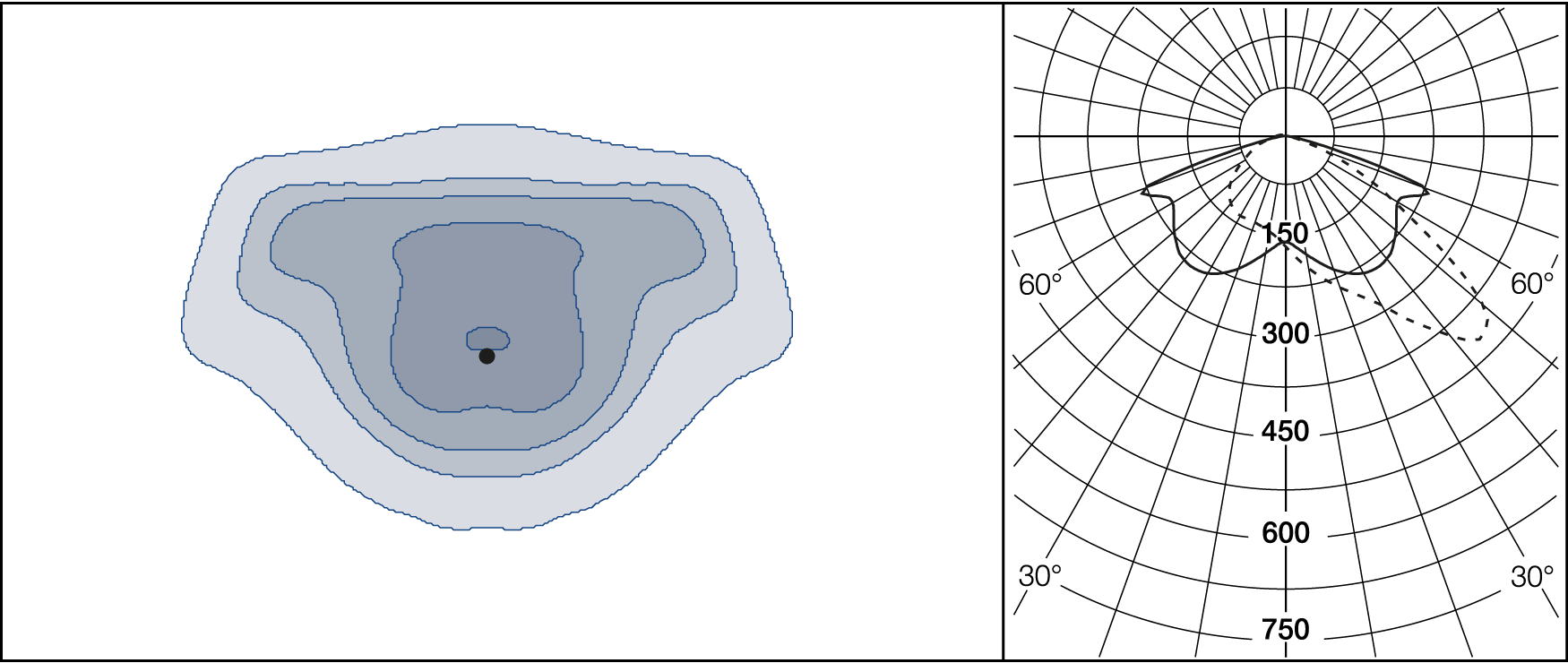

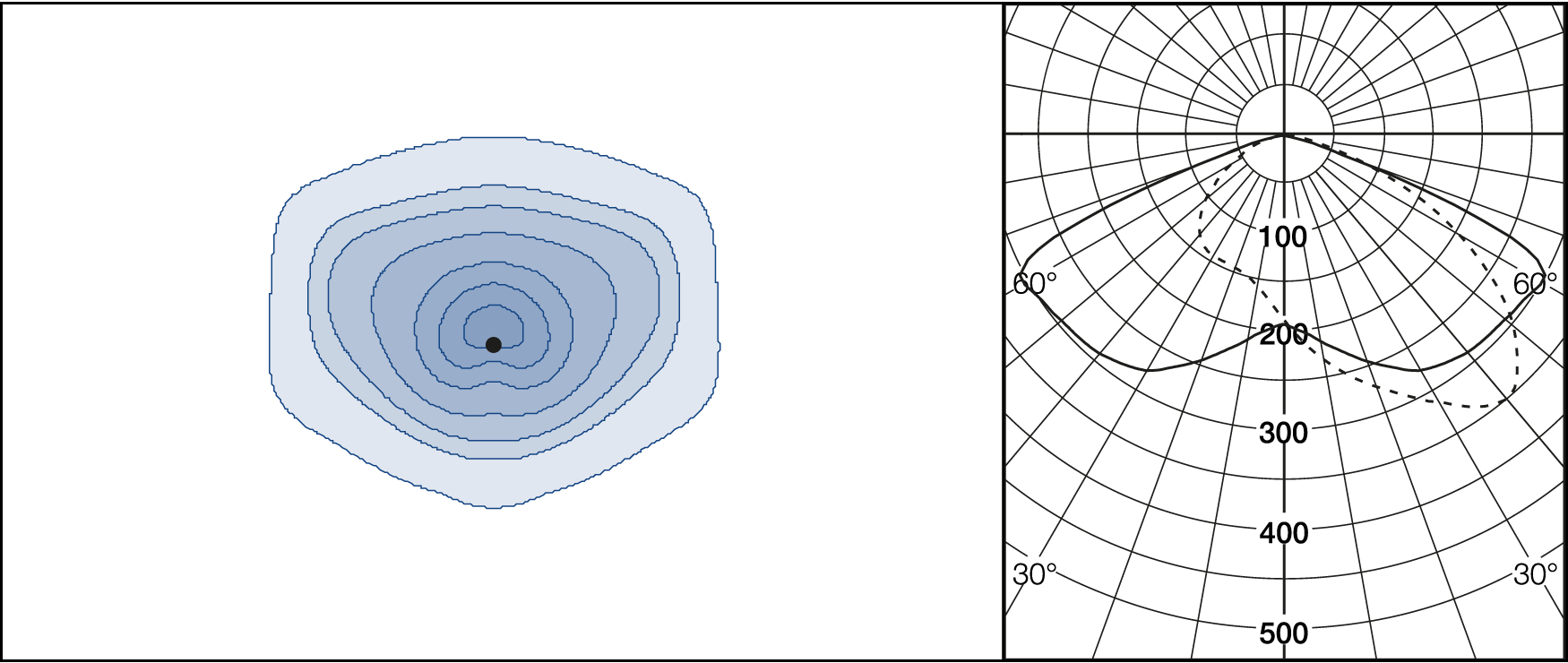

AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority.
Dimming
Citygrid – PIR sensors with presence detection. Wireless communication via radio protocol. Citygrid Linked – a wireless system for one or more luminaires. Can be up-graded to Citygrid Connected. Citygrid Connected – a web-based solution with the ability to remotely control and review the lighting via a cloud hosted gateway which interacts with the installation. An additional subscription is required. Citygrid-products, see accessories. Night dimming or DALI version available on request.
Designed by
ÅF Lighting och Tuxen Design.
Standard colour
Alu-grey (RAL 9006, semi-gloss).
Anthracite grey (Gris 900 Sablé), black (RAL 9005) or white (RAL 9010, semi-gloss) on request.
LED-information
DALI version is equipped with NTC, over-heat protection.
Driver with integrated surge protection (DM: 6 kV. CM: 8 kV).
Extra surge protection (DM and CM: 10 kV) available on request.
Miscellaneous
Available in Classes 1 and 2.
Luminaire with Zhaga D4i-certified driver on request. NEMA socket on request.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media

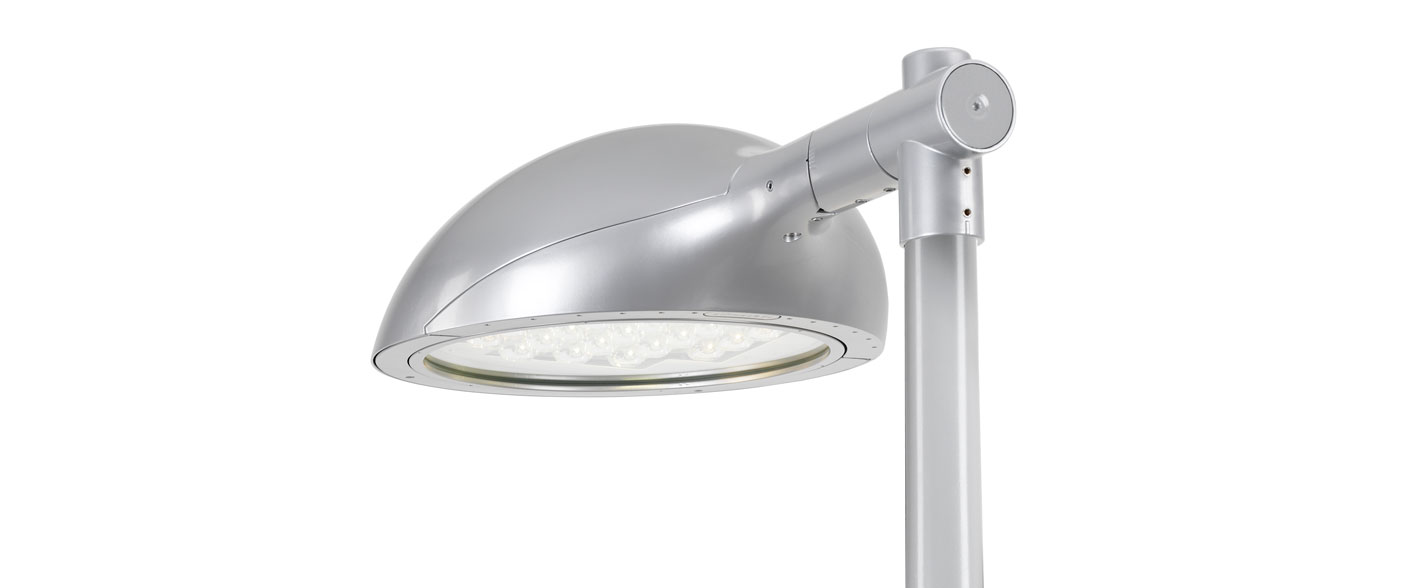

Vialume 2 back

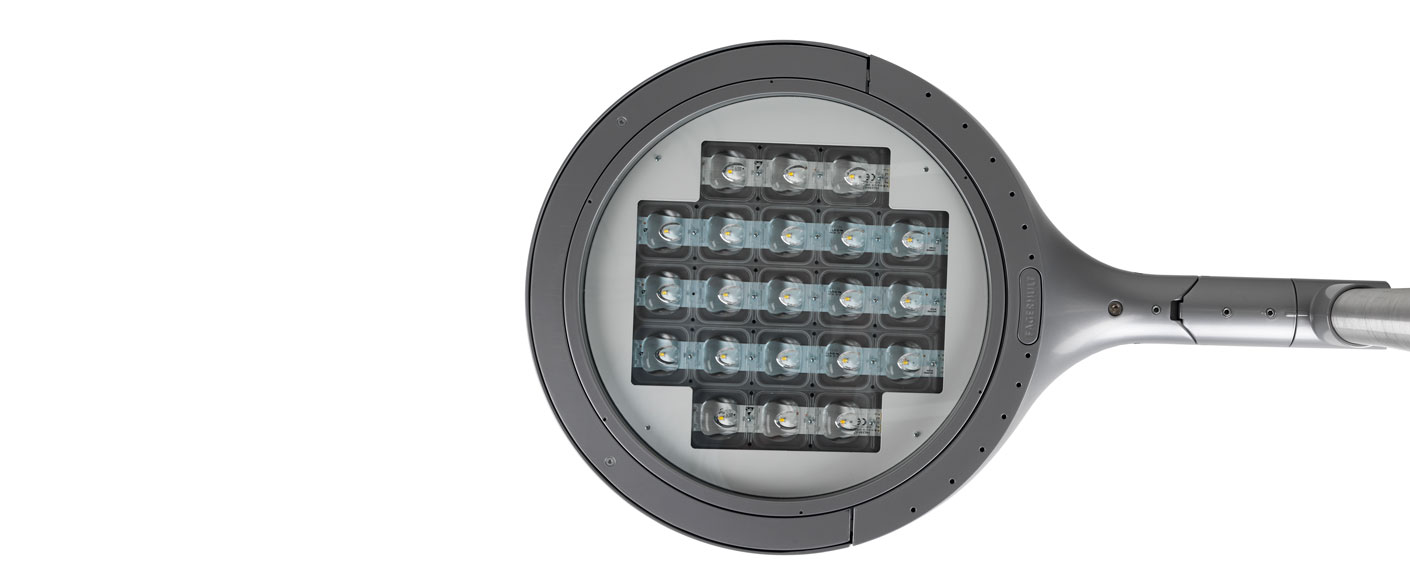

Vialume 2 under

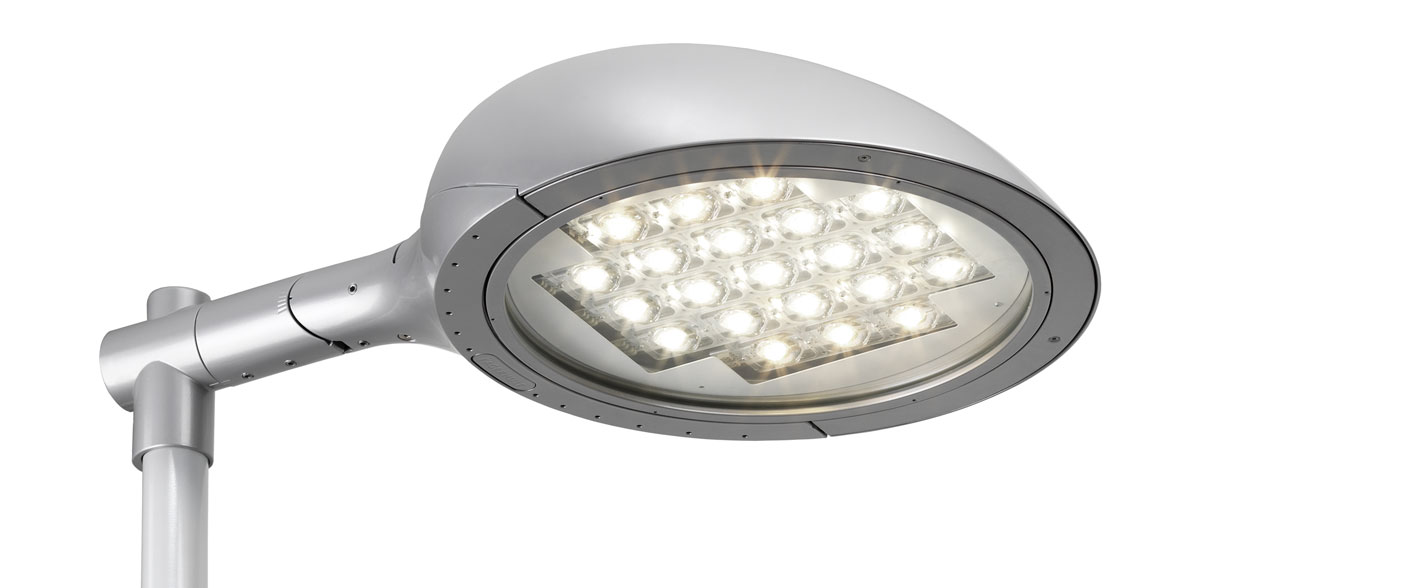

Vialume 2 long
Vialume 2 – Installation
Vialume
Vialume – Fagerhult’s first self-manufactured post top luminaire for roads and city streets – is taking inspiration from the beautiful Nordic light. The luminaire is characterised by a soft, organic shape with simple lines, which ...
More about the family VialumeOther products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Bracket for Vialume 2 | Bracket for Ø 60 mm post top. Alu-grey. | 303858 |
|
Bracket for Vialume 2 | Bracket for Ø 76 mm post top. Alu-grey. | 303859 |
|
Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
|
Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 |
